Applied Product
|
Capsules（Normal、transparent、semi-transparent、printing）
|
|
Model
|
00#、0#、1#、2#、3#、4#、5#
|
|
Inspection Defects
|
Bubble, dark/color spot, Hole, chips, crack, rough cut, long/short, punch, telescoped, head or body alone, ply, locked, double head, dent, thin spot, start end, wrinkle, mix and etc.
|
|
Precision
|
0.05mm
|
|
Speed
|
100,000-120,000 capsules/hour
|
|
Size
|
1920(L)×720(W) ×1200(H)mm
|
|
Weight
|
500Kg
|
|
Power
|
3KW
|
|
Electricity
|
AC380V，50/60Hz
|
|
Air Pressure
|
≥ 0.5MPa
|
|
Temperature
|
5℃ ~ 35 ℃（42℉ ~ 95 ℉）
|
|
Humidity
|
10% ~ 80%
|

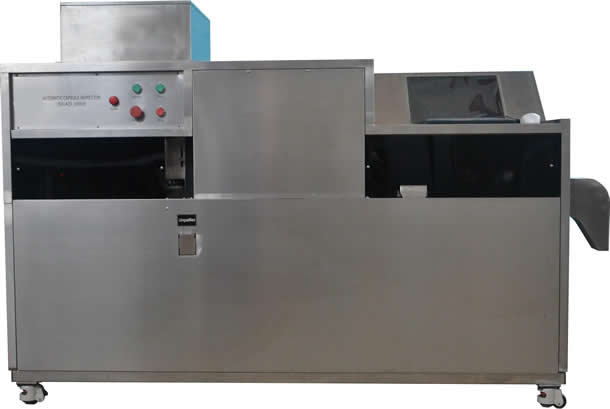

> PRODUCTS > Capsule InspectionAUTOMATIC CAPSULE INSPECTION MACHINE
All Capsules：Normal,Transparent,Semi-transparent,Printing Up to 100,000 capsules/hour, Size 00# to 5#

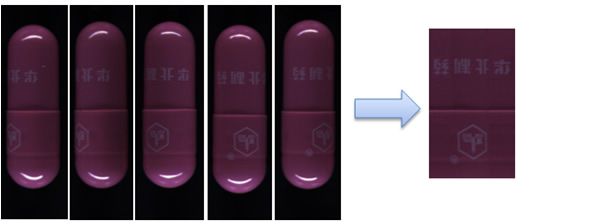

Automatic Capsule Inspection machine adopts principle of machine vision detection and image processing technology. It automatically detects 360 degree of body, two ends and inside of capsules without fade zone.
