All Stoppers:Blood, Freeze-dry, Disinfectingantibiotic Vials,Oral Liquid,Infusion Up to 50,000 Stoppers per hour, Range Φ11-32mm

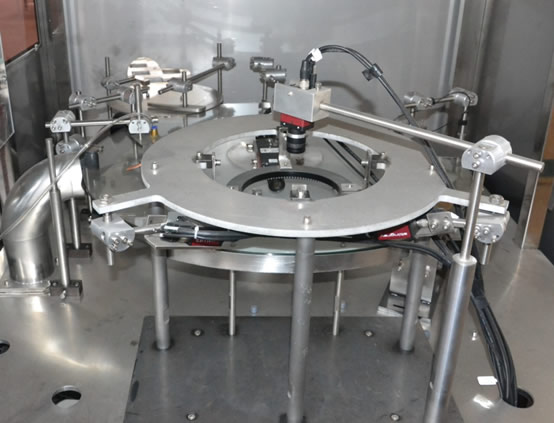

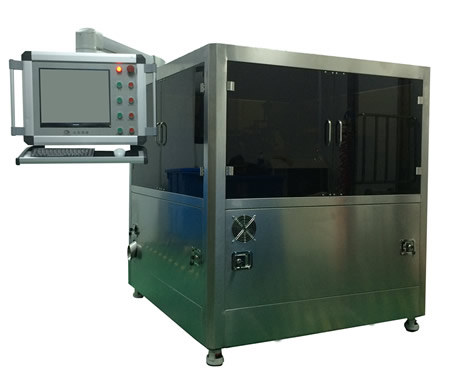

Automatic Rubber Stopper Machine adopts principle of machine vision detection and image processing technology. It automatically detects 360 degrees of crown and plug parts.

• Specifications
• Features
• Defects Samples

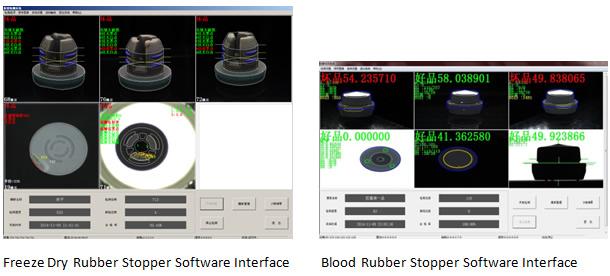

• Software Interface

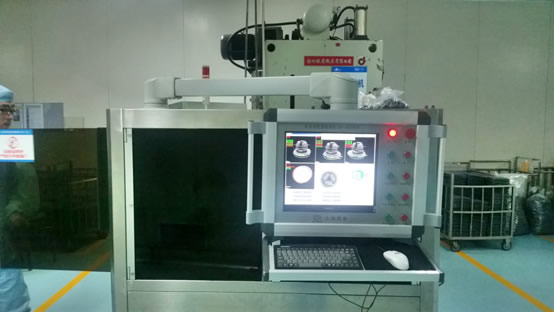

• Customer Site

Applied Product	Pharmaceutical Rubber Stopper （Blood, Freeze-dry, Disinfectingantibiotic Vials,Oral Liquid,Infusion）
Model	Φ11-32mm

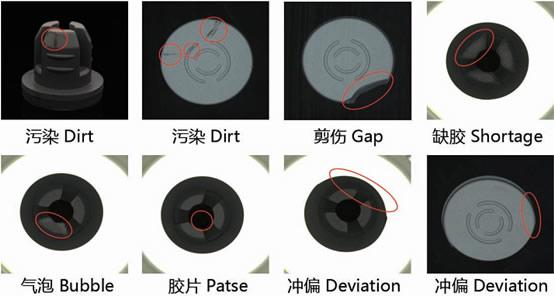

Inspection Defects	Scrap edge ,Incompletes ,Deformation, Color spot, Dirt,Hair,Irregularity,Fold, Mix and etc.
Precision	≥0.1 mm²
Speed	500-800 Stoppers/Min (Depend on size)
Size	2000(L)*1500(W)*1600(H)mm
Weight	550Kg
Power	2KW
Electricity	AC220V, 50/60Hz
Air Pressure	≥ 0.5MPa
Temperature	5℃ ~ 35 ℃（42℉ ~ 95 ℉）
Humidity	10% ~ 80%

• It is able to inspect 360 degrees of crown and plug parts automatically without fade zone.
• Efficiently inspect all kinds of appearance defects, achieve industrial standard.
• It creates templates for different products and managed. Unqualified products removed automatically and result statistics.
• Inspection data saved automatically, results, real-time images and running state displayed.
• Defected products removed automatically.
• Easy used, maintained and cleaned.
